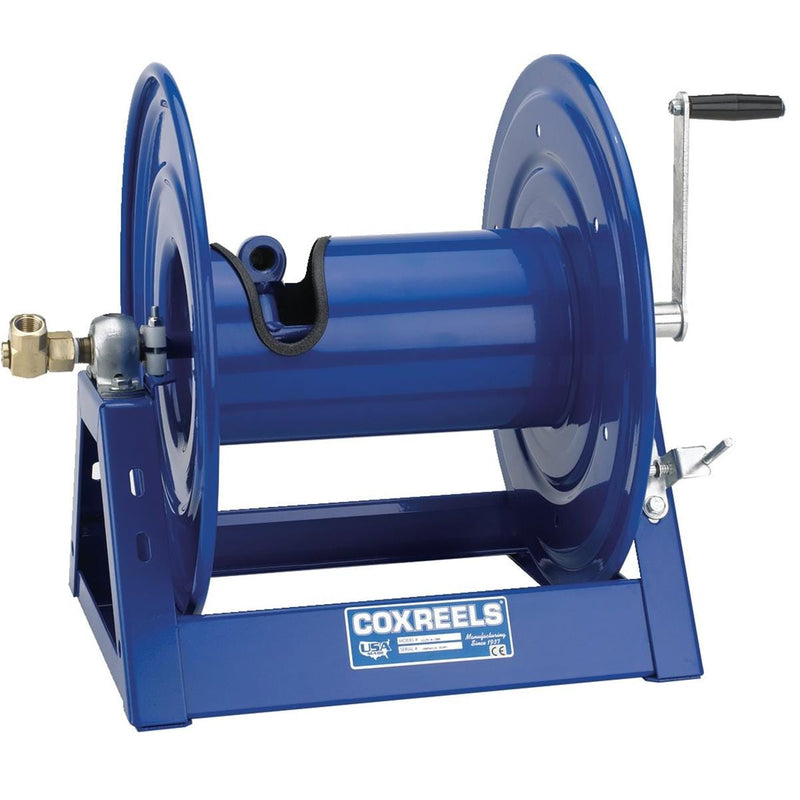

Hand-crank Hose Reel

Item # 212125

In stock.


The economical way to store hose

Solve hose storage issues with Coxreels® hand-crank reels. These reels are an economical way to store your air or water hose and are ideal for use with a pressure washer or any application requiring an air or water hose. This reel is made with a sturdy, one-piece welded A-frame base and features a low-profile outlet riser and open-drum slot design so hose wraps without crimping. Permanently lubricated pillow block bearings provide smooth rotation. A long-handled lock pin may also be used to secure the reel from rotating. Adjustable friction brake assembly brakes or locks the drum. Solid brass NPT swivels have nitrile seals for chemical resistance (1" swivels are zinc-plated steel with Aflas® seals). 3,000 maximum psi. Powder-coat finish. See chart below for hose capacity, length and item number.

Specify hose capacity from drop down box above.


  • Manufacturer #: 1125-4-100
  • Hose Included: No
  • Hose Reel Type: Hand Crank
  • Max PSI: 3000
  • Weight: 36 lb.
  • Hose I.D.: 1/2"
  • Hose Length: 100'
  • Spool Width: 6"
  • Inlet Swivel Assembly: 1/2" F NPT 90
  • Outlet Riser: 1/2'' F NPT
